P480 Access platform hire

The Palfinger P480 access platform combines innovative technology, fully hydraulic processes, and stringent safety standards, ensuring efficient and safe operations at significant heights. Made exclusively available for hire by LinCon across Australia, this 48-metre boom, truck-mounted access platform provides unparalleled access and versatility for a variety of high-access tasks.

Request a quote

P480 Access platform hire

The Palfinger P480 access platform combines innovative technology, fully hydraulic processes, and stringent safety standards, ensuring efficient and safe operations at significant heights. Made exclusively available for hire by LinCon across Australia, this 48-metre boom, truck-mounted access platform provides unparalleled access and versatility for a variety of high-access tasks.

1300 774 586 Request a quote

P480 - (48m) access platform specifications

The P480 is a versatile all-rounder, featuring a 240° X-jib, 2 x 200° rotation, and a telescopic upper boom reaching 17 m. It ensures efficient operation with a 1000 mm stabilising stroke, telescopic basket for 600 kg loads, and an integrated Powerlift system mount.  The spacious workman basket measures 3.90m x 1.10m and supports a maximum load of 600kg to accommodate complex tasks efficiently.

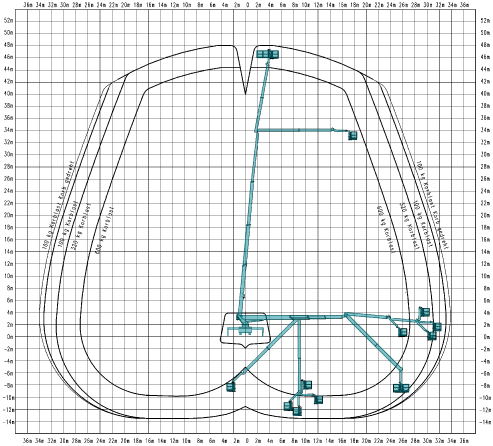

Machine diagram
Max. working height Max. outreach Total weight Overall length Transport dimensions Cage rotation Cage boom rotation Cage size Max. cage load

48.00m

33.10m

26,130kg

10.10m

2.50m (w) x 4.20m (h)

400°

540°

3.90m x 1.10m

 600kg

Frequently asked questions

  • Do you have power in the basket?

    Yes, all trucks have 240v power supply in the basket and have an RCD circuit breaker protection for the 240v, with the exception of insulated units which do not have them.

  • Do you have lifting devices?

    Yes, we have lifting arms that are certified to lift 350kg each, this applies for the access equipment platform industrial units from 32m – 103m.  They are individually certified and serial numbered.

  • Do you have hydraulic connections in your basket?

    Yes, we do, which enables people to use tools such as hydraulic intensifiers – for power works.  This applies for the access equipment platform industrial units from 32m – 103m.

  • What are the biggest baskets you have?

    We have expandable baskets on our trucks which can expand from 2m to almost 4m giving you a huge platform to complete works without compromising basket weight capacity.  This applies for the access equipment platform industrial units 32m – 103m (excluding the 37m).

  • Are your platform controls fixed or movable?

    Our controls are movable and can be moved anywhere within the basket – top rail or bottom rails, allowing for greater flexibility when working.  This applies for the access equipment platform industrial units 32m – 103m

Hire our P480 - (48m) or contact us to ask any additional questions.

Achieve optimal height and reach for your project with the Palfinger P480. Contact us today for a personalised quote for a premium access solution on your high-access site.
