S34XDT access platform hire

The S34XDT access platform is a 34-metre truck-mounted platform designed for safe, efficient and flexible at-height work. Available for hire from LinCon across Australia, this unit is suited to projects that require reliable reach, stable positioning and practical access in a range of work environments. With a strong combination of working height, outreach and platform rotation, the S34XDT is a dependable option for maintenance, infrastructure, utilities and general elevated work.

Max. working height Max. outreach Total weight Overall length Transport dimensions Cage rotation Cage boom rotation Cage size Max. cage load

34m

23.2

16.9t

8.99m

2.50m (w) x 3.74 (h)

2 x 90°

280°

3.7 x 1.1m

 600kg

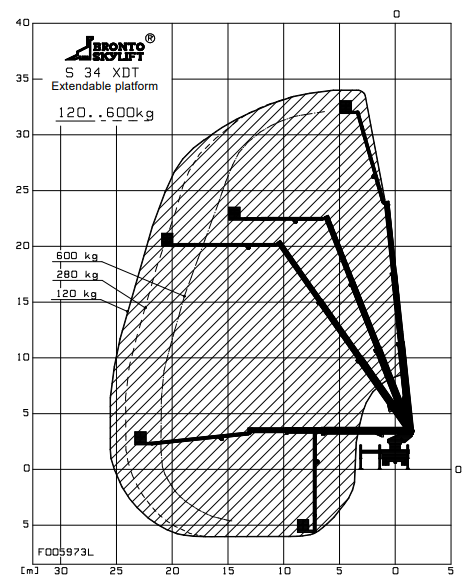

Machine diagram
Max. working height Max. outreach Total weight Overall length Transport dimensions Cage rotation Cage boom rotation Cage size Max. cage load

34m

23.2

16.9t

8.99m

2.50m (w) x 3.74 (h)

2 x 90°

280°

3.7 x 1.1m

 600kg
Machine diagram

  • Why choose this model?

    The S34XDT offers a maximum working height of 34 metres and is built to support safe, controlled access for elevated site tasks. Its main boom rotation is 270 degrees, while the cage rotation is 180 degrees, giving operators greater flexibility when positioning the platform. Designed for practical truck-mounted access, this unit is a strong addition to LinCon’s access equipment hire fleet and is ideal for projects needing reliable height, reach and manoeuvrability.

  • Do you have power in the basket?

    Yes, all trucks have 240v power supply in the basket and have an RCD circuit breaker protection for the 240v, with the exception of insulated units which do not have them.

  • Do you have lifting devices?

    Yes, we have lifting arms that are certified to lift 350kg each, this applies for the access equipment platform industrial units from 32m – 103m.  They are individually certified and serial numbered.

  • Do you have hydraulic connections in your basket?

    Yes, we do, which enables people to use tools such as hydraulic intensifiers – for power works.  This applies for the access equipment platform industrial units from 32m – 103m.

  • What are the biggest baskets you have?

    We have expandable baskets on our trucks which can expand from 2m to almost 4m giving you a huge platform to complete works without compromising basket weight capacity.  This applies for the access equipment platform industrial units 32m – 103m (excluding the 37m).

  • Are your platform controls fixed or movable?

    Our controls are movable and can be moved anywhere within the basket – top rail or bottom rails, allowing for greater flexibility when working.  This applies for the access equipment platform industrial units 32m – 103m.

Hire a S34XDT - (34m) today

Contact LinCon today to learn more about our S34XDT access platform hire options and receive an obligation-free quote tailored to your business or project needs. Simply give us a call or complete our online form with your details to get started.
