WT320 Access platform hire

The Palfinger WT320 access platform offers flexible height access for improved reach in diverse high-access environments. It comes equipped with full hydraulic processes, a telescopic boom, a 500-degree cage rotation, and stringent safety standards.

Request a quote

WT320 Access platform hire

The Palfinger WT320 access platform offers flexible height access for improved reach in diverse high-access environments. It comes equipped with full hydraulic processes, a telescopic boom, a 500-degree cage rotation, and stringent safety standards.

1300 774 586 Request a quote

WT320 - (32m) access platform specifications

The WT320 access platform boasts impressive specs that set it apart. Key features include a 4 x 4 drive type for enhanced stability,  a max working height of 32 meters, and an outreach of 25.50 meters. The platform's cage can rotate up to 500 degrees and has a size of 3.90m x 1.10m, supporting a maximum load of 600kg. Its fully hydraulic processes and advanced functionality make it an ideal choice for challenging projects in construction, maintenance, and more.

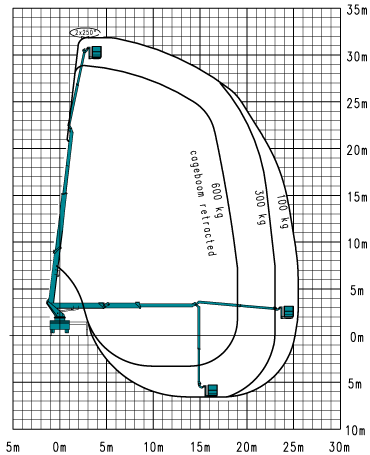

Machine diagram
Max. working height Max. outreach Total weight Overall length Transport dimensions Cage rotation Cage boom rotation Cage size Max. cage load

32.00m

 25.50m

16,320kg

8.30m

2.50m (w) x 3.90m (h)

 170°

500°

3.90m x 1.10m

 600kg

Frequently asked questions

  • Do you have power in the basket?

    Yes, all trucks have 240v power supply in the basket and have an RCD circuit breaker protection for the 240v, with the exception of insulated units which do not have them.

  • Do you have lifting devices?

    Yes, we have lifting arms that are certified to lift 350kg each, this applies for the access equipment platform industrial units from 32m – 103m.  They are individually certified and serial numbered.

  • Do you have hydraulic connections in your basket?

    Yes, we do, which enables people to use tools such as hydraulic intensifiers – for power works.  This applies for the access equipment platform industrial units from 32m – 103m.

  • What are the biggest baskets you have?

    We have expandable baskets on our trucks which can expand from 2m to almost 4m giving you a huge platform to complete works without compromising basket weight capacity.  This applies for the access equipment platform industrial units 32m – 103m (excluding the 37m).

  • Are your platform controls fixed or movable?

    Our controls are movable and can be moved anywhere within the basket – top rail or bottom rails, allowing for greater flexibility when working.  This applies for the access equipment platform industrial units 32m – 103m

Hire our WT320 - (32m) or contact us to ask any additional questions.

For superior height and reach on your next high-access project, the Palfinger WT320 is your go-to option. Contact us today for a tailored quote on this top-of-the-line access platform.
